Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS
  • Selleren.seshop.co
  • Price ofUS$120.54-154.03
  • Your Price
  • ShippingFree Shipping
  • Discount% off
  • Ratings4.6 (468)

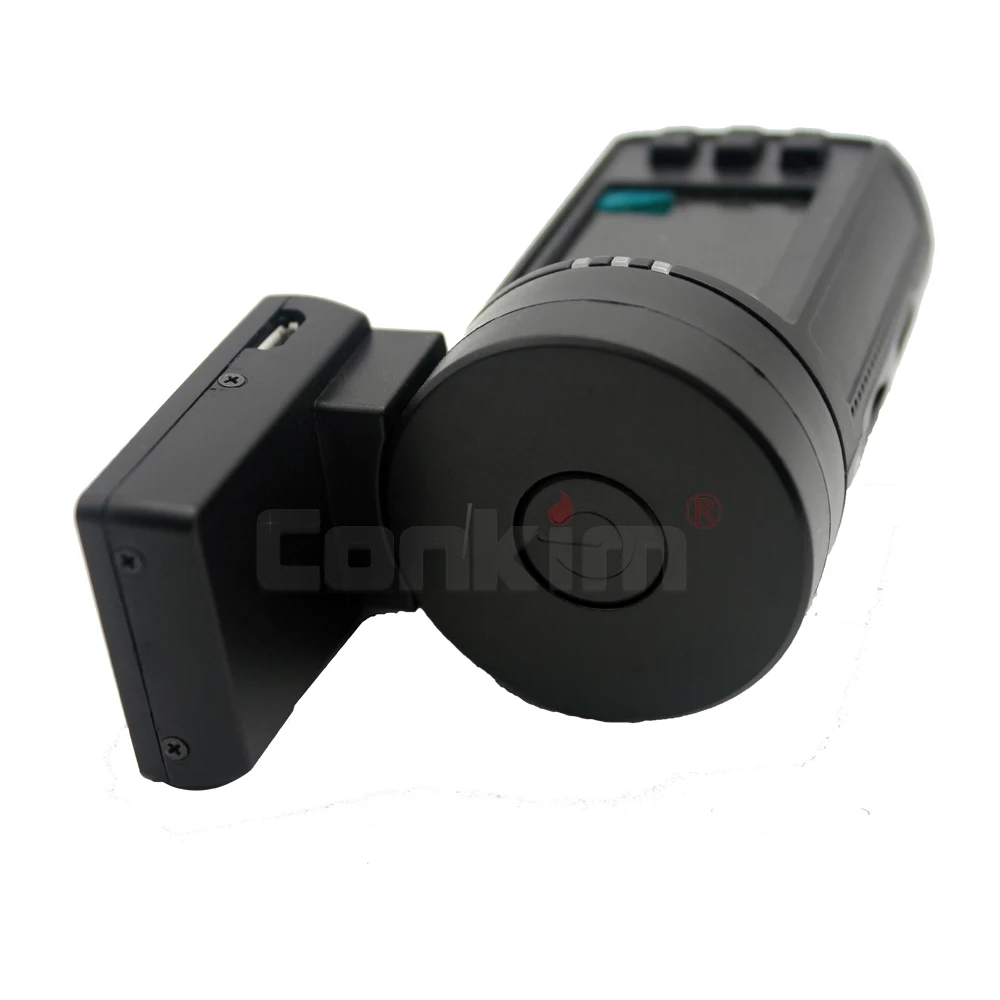

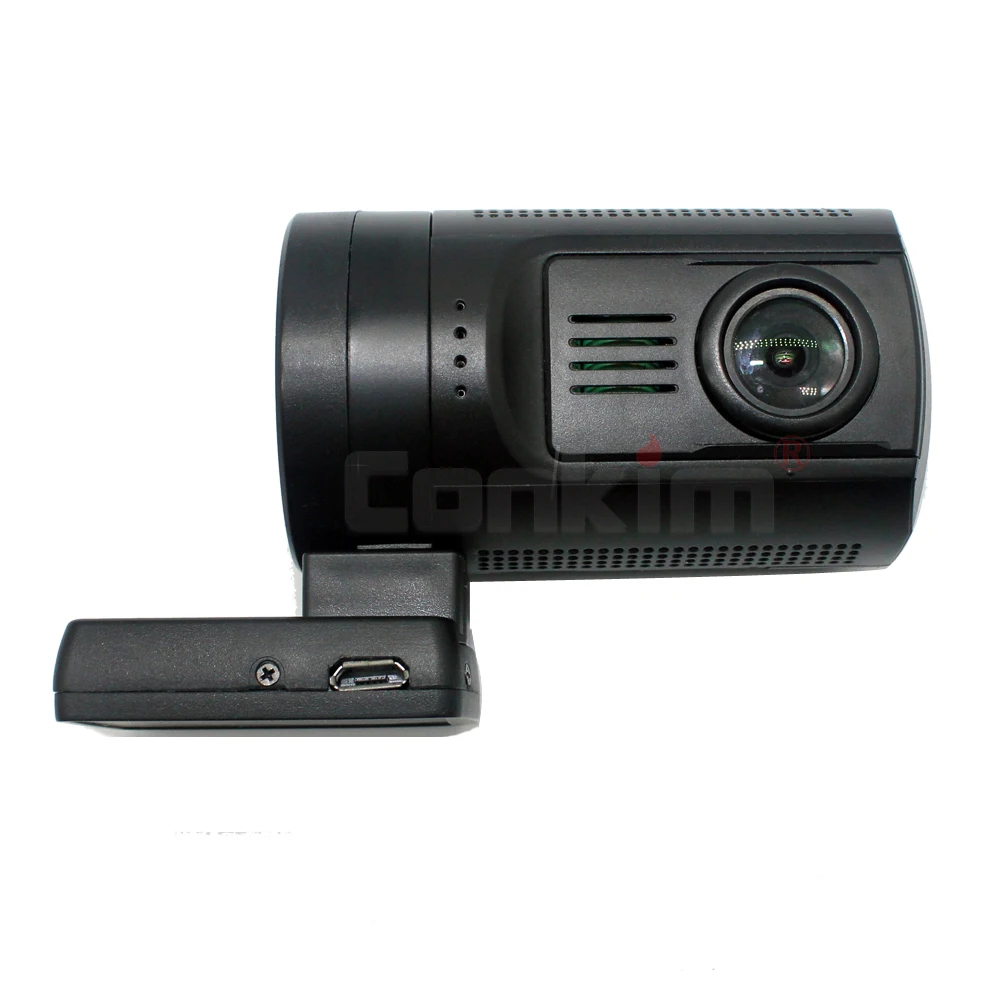

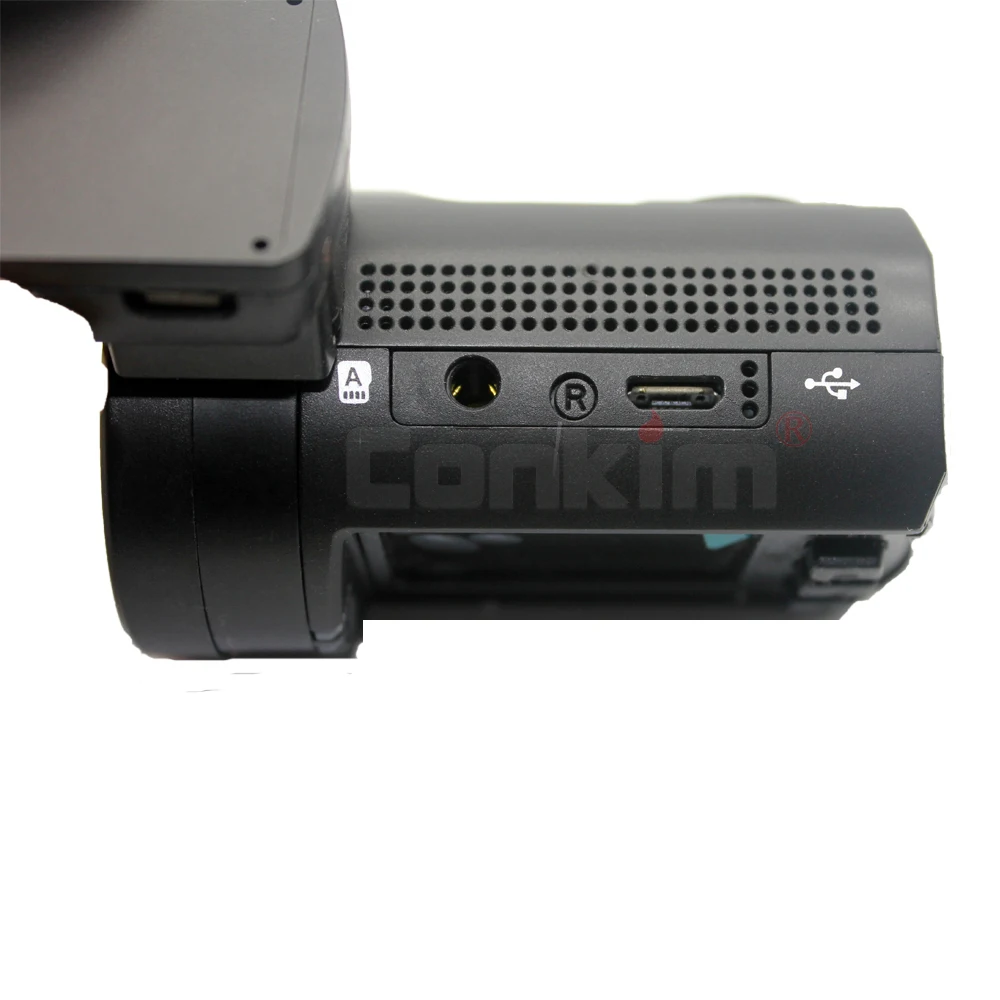

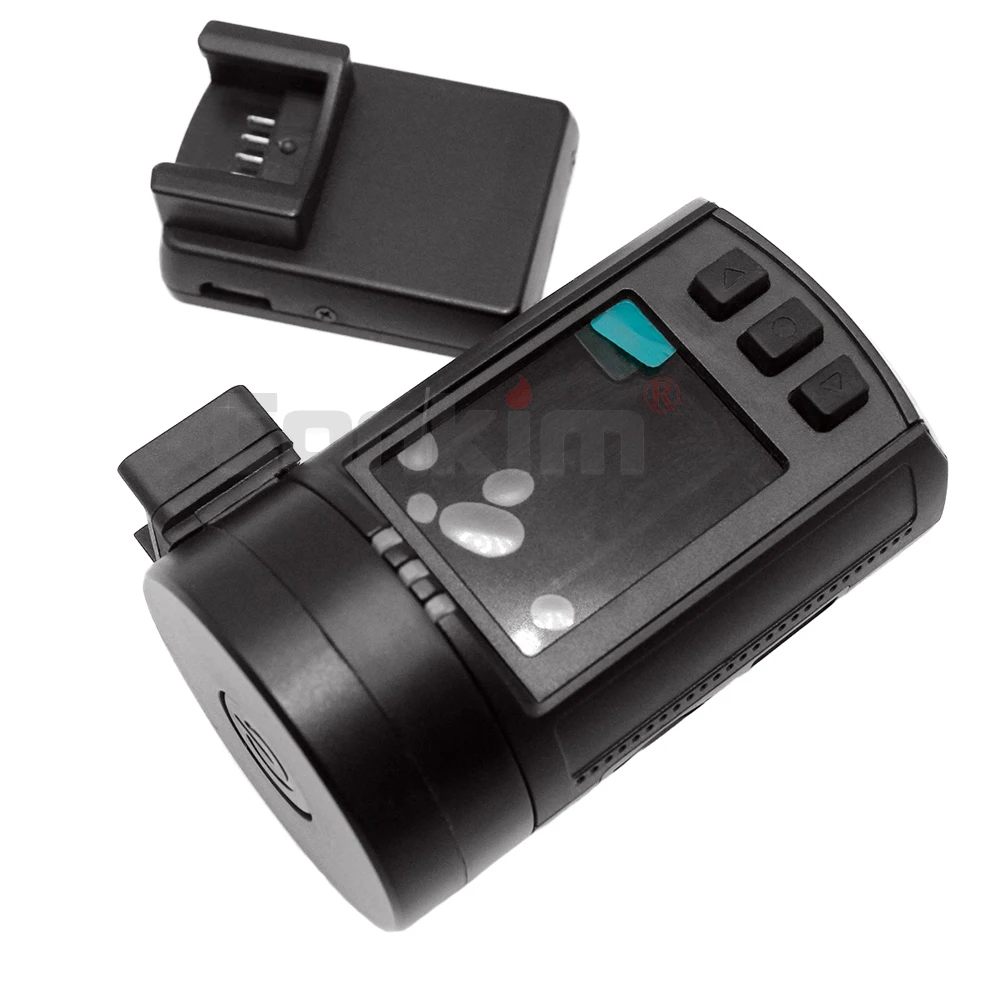

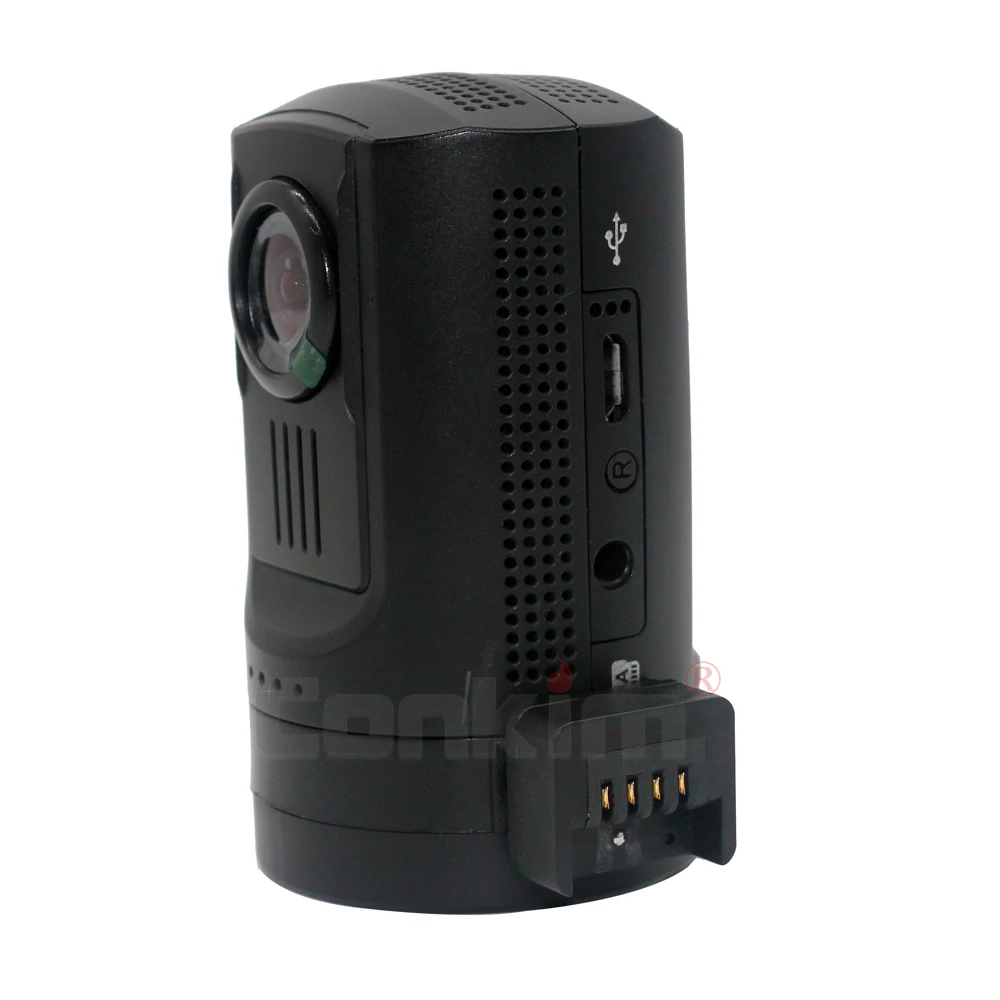

Image Details

Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 1Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 2Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 3Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 4Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 5Conkim Ambarella A7 Dash Cam Mini 0806s Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder Super Capacitor Car Camera GPS - 6

Product Details

descriptione
dash camera (1)

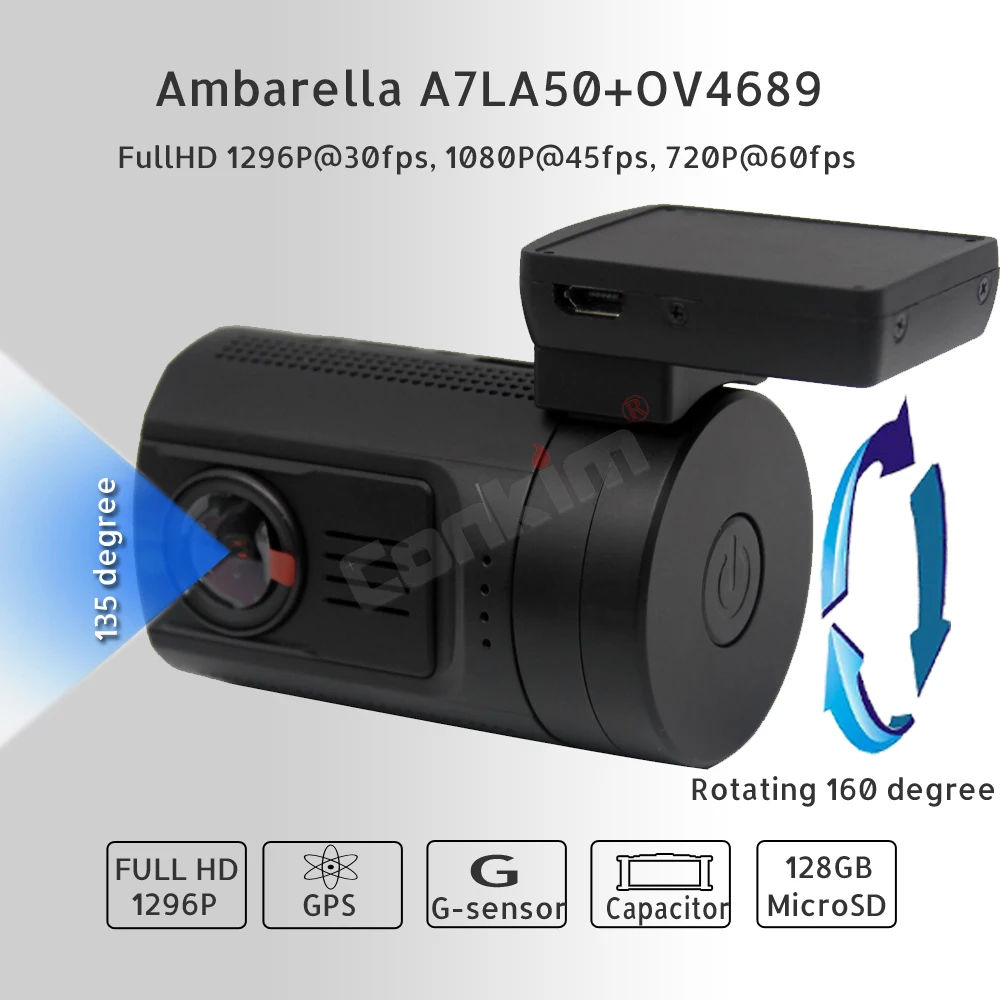

Ambarella A7LA50 Chipset, OV4689 4MP CMOS sensor
Video Resolution:
2560*[email protected], [email protected], [email protected], [email protected] HDR, [email protected], [email protected]

dash camera (2)

GPS/SPEED/DRIVER NUMBER Stamping
The dash camera can record your driving trace and stamp the GPS data, speed and stamping the speed data, driver number or customized phrase on video.

dash camera (3)

Loop Recording
The camera supports automatically loop recording when the card is full.



dash camera (5)

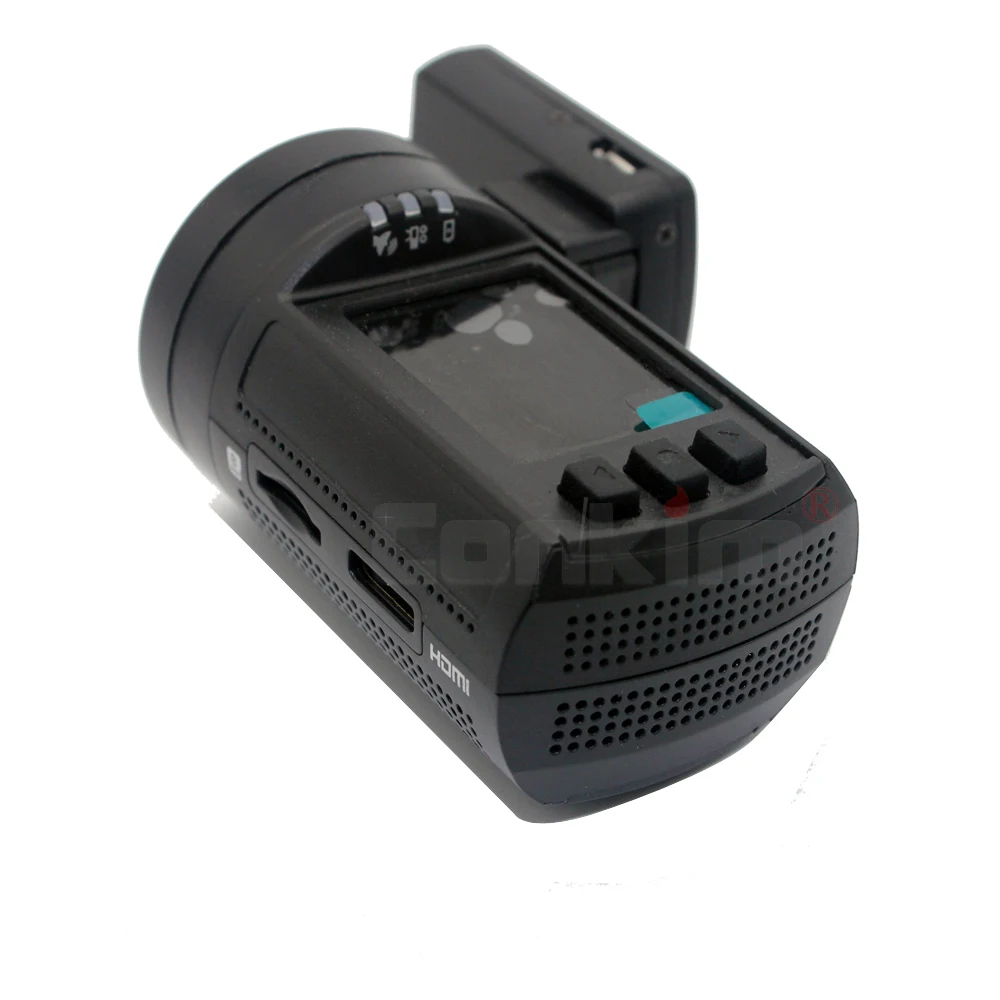

Support HDMI and AV-out transmission
dash camera (6)

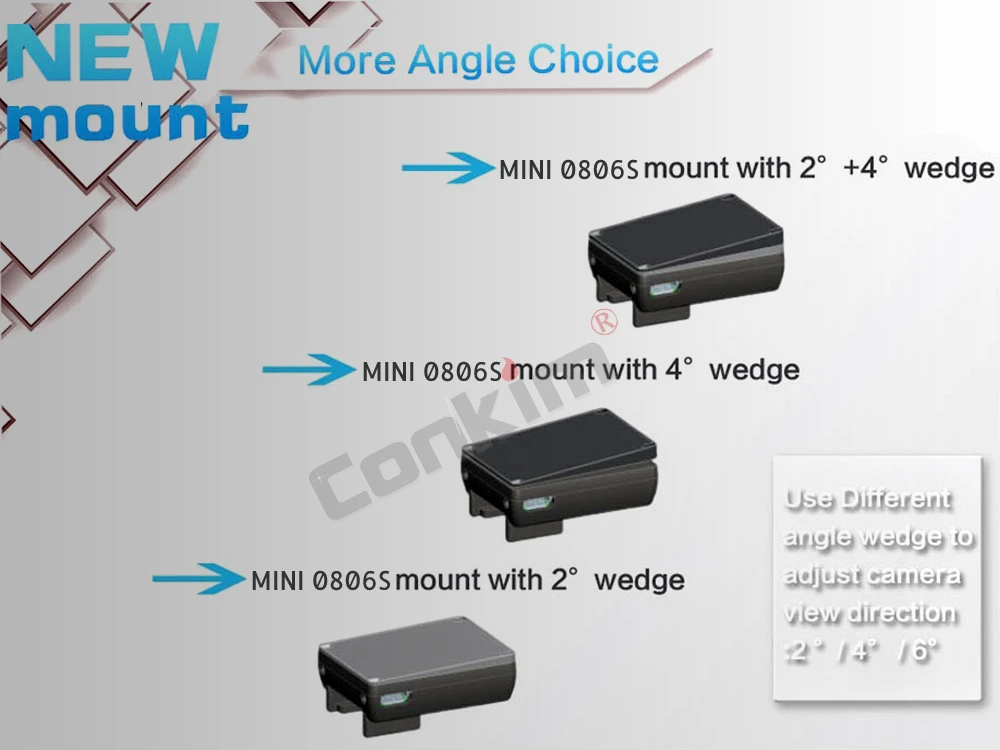

Sticker Mount with 2 °wedges +4 ° wedges
When you need the camera offset from top center of windshield, you can use the wedges to adjust the camera view direction.
There are two wedges attached in accessories bag, one is 2 °angle and another is 4 °angle. With those you can mount the dash camera at a 2 °,4 ° or with both together 6° offset location.

dash camera (7)

CPL filter (Optional)
Reduce the relection from shiny surface like vegetation, sweaty skin, water surface, glass, road and let the natural color come through at the same time.
Some of the light coming from the sky is also polarized to give a more dramatic sky and high contrast clouds, rendering outdoor scenes crisper with deeper color tones.
Align the white line on CPL with the dot on camera and rotate for best reflection reducing effect.
CPL filter is highly recommend for Mini 0906 camera. You may also buy extra CPL, click here to buy

dash camera (8)

Built in G-sensor
The G-sensor is used to detect the 3-axis impacting forces (vibration acceleration). If any impact over the threshold value is detected, the current recording file will be locked to avoid being over-writen.

car dvr (1)

Built in Super Capacitor, no battery
Mini 0806s with super capacitor tech. it can't be turned on until is recharged by car charger.
Safty confficient is higher than Mini 0806.
It's working temperature -25℃~65℃
More stable in Winter or Summer.
Longer lifetime than battery version.

car dvr (3)
The parking guard hardwire kit can be used as a high quality common hardwire kit as there is no Parking Guard function on 0806s camera.
descriptione

Upgrade Mini 0806S Car DVR Dash Camera 1296P HDR Ambarella A7 OV4689 GPS ADAS Low-voltage Protection Video Recorder Capacitor

Set 1: Mini 0806s with GPS standard package
Set 2: Mini 0806s with GPS standard package + 24mm CPL filter
Set 3: Mini 0806s with GPS standard package + 24mm CPL filter + Top quality hard wire kit
Set 4: Mini 0806s with GPS standard package + 24mm CPL filter + OBD hard wire kit
Set 5:Mini 0806swithout GPS standard package

Inside motherboard picture for reference:
motherboard-4motherboard-6
Features:
  1. Patent industrial design
  2. Ultra MINI size
  3. Display Size: 1.5 inch TFT
  4. Cinema Mode 2560*1080 (21:9) 30fps
  5. FullHD [email protected], [email protected], [email protected]
  6. Support HDR (High-Dynamic-Range) for superior low light performance, [email protected] HDR
  7. Video Format: MOV (H.264)
  8. Camera Pixel: 4 Million Pixel CMOS
  9. 135 degree Viewing Angle
  10. Camera rotating 160 degree for reverse mounting
  11. Built-in G-sensor
  12. Support HDMI and AV-out Function, connect to TV for Video and Photo viewing
  13. Support Route Tracking via GPS (with GPS mount base)
  14. Support 128GB Maximum TF cards recording (Not include)
  15. Support Movement Detection
  16.
  17. Seamless Link Loop Recording
  18. Support Video Protection, prevent overwrite important video
  19. Support Audio On/Off while Video Recording
  20. Battery: 5V 2.5F super capacitor
  21. Adapter: MicroUSB 5PIN Port
specification

 Lens Pixel

1/3" color CMOS 4 MegaPixel (2688*1520) Image Sensor

Lens Visual angle

Wide angle135 degree

Lens optical parameter

6G, F2.0, f2.5mm

Lens  rotation angle

160 degree

Lens Object Distance

0.5m~infinity

Video  format

MOV

Video resolution and transfer rate

2560*[email protected][email protected][email protected], [email protected] HDR/ [email protected][email protected]

Video compression format

H.264

Picture format

JPG

Picture pixels

Support 4MP MAX

Rear Camera

no

Sound record

Synchronous video and sound recording or shut sound recording

Sound Recording area

20m2

Display screen

1.5 inch  HD TFT

External memory card

≥TF-Class6

Capacity of memory card

8G-84GB (official, can use up to128GB)

Battery Capacity

5V 2.5F super capacitor

MIC and Speaker

yes

AV IN

no

AV OUT

yes

HDMI interface

Yes, CTS1.3

USB interface

USB2.0 high-speed transmission

Circular loop recording

Support

Motion detection

Support

G-sensor Gravity Detection

Support

GPS track

YES, optional

LDWS (Lane Departure Warning System)

no

Wide-angle Distortion Correction

no

Night vision LED

no

Digital Zoom

no

ISO sensitivity

auto

Auto turn on and off

yes, auto turn on when engine start, auto turn off after engine cut off

reverse mounting&displaying&recording

Support

Video Player software

Registrator Viewer/Media player/KM player (codec pack needed)

Support Operation system

windows/Imac

USB Disk function

Support

Web camera

no

build in Language

Support multinational languages

Store temperature

-5F…+176F(-20℃…+80℃)

Operate temperature

14F…+140F(-10℃…+60℃)

Operate humidity

15%-80%RH

mage
1213141516
11a23455a6

0806s GPS
IMG_3284
Click picture to learn more about optional accessories:
